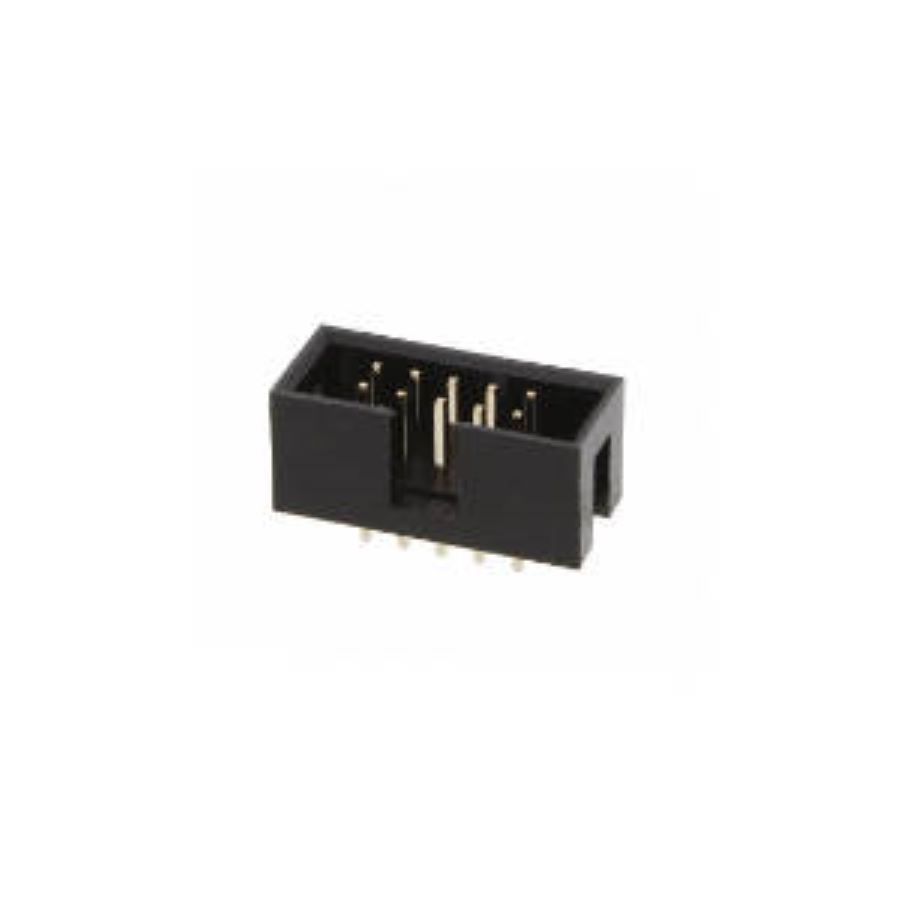

3020-10-0100-00
Manufacturer:
CNC Tech
Mfr.Part #:
3020-10-0100-00
Datasheet:
Description:
Connectors Pin Pitch2.54mm Through Hole Number of Rows:2 Contact Plating:Gold Pitch:2.54 mm Number of Positions:10
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Insulation Material | Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T |
| Fastening Type | Push-Pull |
| Contact Style | Male Pin |
| Contact Shape | Square |
| Contact Finish Thickness - Mating | Flash |
Stock: 5396
Distributors
pcbx
pcbxUnit Price$0.40023
Ext.Price$0.40023
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40023 | $0.40023 |
| 10 | $0.33789 | $3.37890 |
| 25 | $0.31998 | $7.99950 |
| 50 | $0.30302 | $15.15100 |
| 100 | $0.28695 | $28.69500 |
| 300 | $0.27108 | $81.32400 |
| 500 | $0.25608 | $128.04000 |
| 1000 | $0.24252 | $242.52000 |
| 3000 | $0.22968 | $689.04000 |
| 5000 | $0.21752 | $1087.60000 |
| 10000 | $0.20601 | $2060.10000 |
